Camerapad Moving currently supports these devices:

Camera Description MOVING SUPPORTS
Picturetel Camera Module 4000
8X optical zoom, 180deg pan, +15/-30deg tilt, 8 hardware presets, RS232, Hardware speed scaling.
Older camcorder video head.  These units are often very loose and have bad video output.  Recommend not using.
 PTZ
DIAGONAL
8 HW PRESETS
FOCUS_ON/OFF
WB
IRIS
POWER_ON/OFF
Picturetel PTZ1 "Stealth Camera"
Part#: P540-0038-02
10X optical zoom, 180deg pan, +15/-30deg tilt, 66deg view with included .6x wide-angle lens, 8 hardware presets, RS232, Hardware speed scaling, 1/3" High-Res color CCD, 7 Lux, uses the Sony EVI-130 camcorder video head.  Accepts external 37mm lenses.  Strong movement, metal parts good four outside in enclosure.
 PTZ
DIAGONAL
8 HW PRESETS
FOCUS_ON/OFF
WB
IRIS
POWER_ON/OFF
Picturetel PTZ2 / Powercam 100 / Hawkeye
Part#: P540-0058-03
10X optical zoom, 200deg pan, +15/-30deg tilt, 66deg view, 8 Hardware Presets, RS232, Hardware speed scaling, 1/3" High-Res color CCD, 7 Lux, uses the Sony EVI-130 camcorder video head. 37mm .6x wide-angle lens inside camera head. Is designed to move smooth and fast and do it quietly. Best Picturetel choice..
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
FOCUS
WB
IRIS
SHUTTER
POWER_ONOFF
IR REMOTES

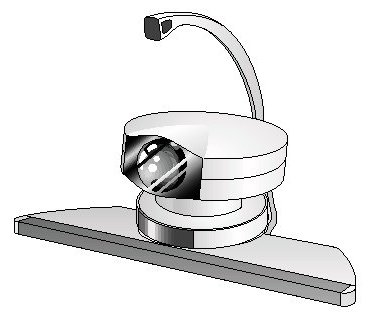

Picturetel External Limelight Addon Module
Part#: LMLT
Optional auto-tracking microphone base for the Powercam 100.

 TRACKING_ON/OFF
FRAMING

Picturetel Powercam 30
Part#: 540-0124-01
10X optical zoom, 70deg pan, +5/-30deg tilt, 61deg view, RS232, Hardware speed scaling
 PTZ
COORDINATES
20+ PRESETS
FOCUS
WB
IRIS
POWER_ON/OFF
IR REMOTES

Picturetel PTZ4/PT70
Part#: 540-0430-01
12X optical zoom, +/-100deg pan, +15o/-30deg tilr, 66deg view, RS232, Hardware speed scaling
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
FOCUS
WB
IRIS
POWER_ON/OFF
IR REMOTES

Picturetel APTZ1/PT80
Part#: 540-0350-01
12X optical zoom, +/-100deg pan, +15o/-30deg tilr, 66deg view, Internal Limelight auto tracking, RS232, Hardware speed scaling
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
FOCUS
WB
IRIS
POWER_ON/OFF
IR REMOTES
TRACKING_ONOFF
Polycom MPTZ-5N Powercam Plus / Snake eye
10X optical zoom, 200deg pan, +25/-25deg tilt, 65deg view

Works with CABPTELPLUS. Yup, it's a Picturetel designed camera. Same pinout.
DO NOT USE SONY VISCA CABLE! Uses SONY control panel for Visca commands.		 PTZ
DIAGONAL
SPEED
SOFTWARE PRESETS
COORDINATES
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF

Polycom APTZ-2N Powercam Plus with integrated Limelight
10X optical zoom, 200deg pan, +25/-25deg tilt, 65deg view, Limelight auto tracking

This camera actually does not have tracking built in. Instead, the microphones are wired to the codec which has the magic processor. Camera has a 15pin din connector and we do not carry a cable for this model but I do have a schematic to share.

Uses SONY control panel for Visca commands.

 PTZ
DIAGONAL
SPEED
SOFTWARE PRESETS
COORDINATES
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF

Polycom MPTZ-6 EagleEye I
HD 720 format camera. High-density 60pin connector. No cable available yet. Standard Visca control panel. Send me one!

Basic Visca Control

Polycom MPTZ-7 EagleEye 1080
HD 1080 format camera. Has a minidin8 for standard Visca minidin cable. Use the SONY control panel. Send me one!

Basic Visca Control

Polycom MPTZ-8 EagleEye II
HD 1080 format camera. High-density 60pin connector. No cable available yet. Standard Visca control panel. Send me one!

Basic Visca Control

Polycom MPTZ-9 EagleEye III
HD 1080 format camera. High-density 60pin connector. No cable available yet. Standard Visca control panel. Send me one!

Basic Visca Control

Polycom EPTZ-1 EagleEye View
HD format camera. High-density 60pin connector. No cable available yet. Standard Visca control panel. Send me one!

Basic Visca Control
PictureTel Keyboard Remote - This remote control works with Picture PTZ2, Powercam 30, PTZ4/PT70, APTZ1/PT80 camera models through Camerapad Moving.
PTZ
DIAGONAL
SET PRESETS
GO TO PRESETS
LIMELIGHT
POWER_ON/OFF
PictureTel Handheld Remote - This remote control works with Picture PTZ2, Powercam 30, PTZ4/PT70, APTZ1/PT80 camera models through Camerapad Moving.
PTZ
SET PRESETS
GO TO PRESETS
LIMELIGHT
POWER_ON/OFF
PictureTel Look-At-Me-Button™ - This remote control works with Picture PTZ2, Powercam 30, PTZ4/PT70, APTZ1/PT80 camera models through Camerapad Moving.
SET LAMB POSITION
GO TO LAMB POSITION
CYCLE BOOKMARKS
VTel Smartcam
for the MediaMax and LC systems Part#:005-1035-01
8X optical zoom, 140deg pan, +5/-10deg tilt, RS232
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
FOCUS
IRIS
VTel Smartcam Tophat
on the MediaMax and LC systems Part#:005-1035-03
8X optical zoom, 140deg pan, +5/-10deg tilt, RS232

 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
FOCUS
IRIS
VTel PTZ2 Controller
on the MediaMax and LC systems Part#:005-1079-02
Switcher will allow control of up to four Smartcam cameras simultaneously with a single serial port to the pc. Will also switch all four video signals through output1 using Camerapad Moving.

 CAM SELECT
VTel Camera Module made by CLI
8X zoom, Sony camera head		 PTZ
COORDINATES
SW PRESETS
SPEED
FOCUS
IRIS
CLI Camera Module
for Eclipse/Radiance systems
8X zoom, Sony camera head
 PTZ
COORDINATES
SW PRESETS
SPEED
FOCUS
IRIS
POWER_ON/OFF
Pro200 Elmo PTC-100S
22X zoom, 300deg pan, +90/-30 deg tilt, 6 Hardware Presets, Daisey chain cameras via SONY VISCA PROTOCOL. 		PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
POWER_ONOFF
ProKX Panasonic KXC-QAB02
10X zoom, 200deg pan, +15/-87 deg tilt, 51deg view, 11 Presets, RS232
OEM Data Card and other misc use. Power must be fed through control cable for this type.
 PTZ
PRESETS
FOCUS
WB
POWER_ONOFF
ProKX Panasonic KXC-CM775, KXC-CM780, KXC-PG100
10X zoom, 200deg pan, +15/-87 deg tilt, 51deg view, 11 Presets, RS232
Came with Panasonic KXC-M7500, M7800 Vision Pro video conf systems. Also OEM as ClearOne and VideoLabs PTZCam and Wallcam.
 PTZ
PRESETS
FOCUS
WB
POWER_ONOFF
Panasonic KX-DP602
10X zoom, 200deg pan, +15/-87 deg tilt, 51deg view, 11 Presets, RS232		 PTZ
PRESETS
FOCUS
WB
POWER_ON/OFF
Panasonic KX-DP702
21X zoom, 200deg pan, +15/-87 deg tilt, 51deg view, 11 Presets, RS232
PTZ
PRESETS
FOCUS
WB
POWER_ON/OFF
Sony EVI-D30/31
12X zoom, 200deg pan, +/-25 deg tilt, RS232		 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF
SONY PCS-C300
12X zoom, 200deg pan, +/-25 deg tilt, RS232		 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF
Sony EVI-D100
10X zoom, 4X digital zoom, 200deg pan, +/-25 deg tilt, RS232
Currently supported in emulation mode by the evi-d30 control panel.
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF

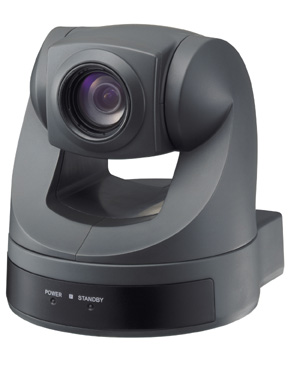

Sony EVI-D70
18X optical zoom, 12X digital zoom, 340deg pan, +90/-30 deg tilt, RS232, 1Lux, Invert mount,
Currently supported in emulation mode by the evi-d30 control panel.
 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF
Sony EVI-G20/21
3X zoom, +/-30deg pan, +/-15deg tilt		 PTZ
DIAGONAL
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF
Tandberg Camera Unit II
12X zoom, +/-5° tilt, +/-50° pan, 45° field of view, 7 Lux, 10 hardware presets
NOT VISCA!
 PTZ
COORDINATES
20+ SW PRESETS
FOCUS
WB
IRIS
BACKLIGHT
IR REMOTE
Tandberg Camera Unit III (WAVE I)
12x zoom, 1/3" CCD, +5°/-5° tilt, +/-95° pan, 56° vertical field of view, 76° total vertical field of view, 80° horizontal field of view, 270° total horizontal field of view, Min. illumination 7 Lux (F1.8),Auto or manual focus/brightness/white balance,15 camera pre-sets,uses a modified VISCA PROTOCOL. Hardware speed scaling. IR passthrough		 PTZ
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF
Tandberg Camera Unit IV (WAVE II)
10x zoom,1/4" CCD,+15°/-20° tilt,+/-95° pan,61° vertical field of view 96° total vertical field of view,77° horizontal field of view,267° total horizontal field of view,460 (PAL)/470 (NTSC) TV lines,Min. illumination 2 Lux (F1.8),Auto or manual focus/brightness/white balance,15 camera pre-sets,Daisy chain support for up to 4 cameras via SONY VISCA PROTOCOL. Hardware speed scaling. IR passthrough		 PTZ
COORDINATES
20+ SW PRESETS
SPEED
FOCUS
WB
IRIS
GAIN
SHUTTER
POWER_ON/OFF

And we plan on supporting these devices in the future:
sony brc-300
sony brc-z700
sony brc-h700
Tandberg Remote Control



CLI Remote Control - Eclipse RCU Model 252-00027. This remote control works with CLI Camera Module.



VTel SmartTrak
Auto tracking microphone technology for the Sony D30 cameras on the VTel Galaxy system.
ProC4 Canon VC-C4
16X zoom, 200deg pan, +90/-30 tilt, RS232


Canon VC-C3
10X Zoom, +-90deg pan, +25/-80deg tilt, RS232
Canon VC-C1
8X Zoom, +/-50deg pan, +/-20 deg tilt, RS232
Also OEM as AT&T VISTIUM CAMERA 200 and 300 Video Conference Camera
Parkervision Cameraman I, II
Pro2000 Vicon S2000/RW23...
Outdoor system, RS422, and wall-mount.
cam has 23X zoom, 360deg pan, +5/-90 deg tilt
ProVL Videolarm PDW1... outdoor dome camera system!
10X zoom, 360deg pan, 90 deg tilt, RS485
This is an ideal solution for weather-tolerant outdoor installations.
Videolarm's PDW1 housing can be pressurized and has built-in heater/blower.
WVCS854 Panasonic WV-CS854 - Indoor dome camera
22X zoom, 360deg endless pan, 180deg tilt, RS485
Also the WV-CST604 and other similar models.
Kalpyys KAL-2000SD
12X, 360deg pan, +5/-90deg, 24VDC, RS232
CMPTU Directed Perception PTU 46-17.5 and PTU 46-70
High precision pan/tilt base for use with separate camera
+180/-180 deg pan, +37/-80 tilt, 0.0025 deg precision
ETX60AT Meade ETX-60AT and ETX-70AT scopes
CMPTB Bescor MP101 base
Low-cost pan/tilt controller for use with your camera
Supports zoom and focus control for most Sony and Canon LANC camcorders
X10 Ninja pan/tilt base
TrackerCam TrackerPod
Low cost pan-tilt base USB control

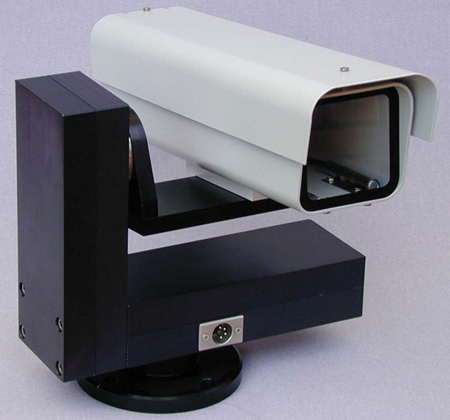

HarrisTech pan-tilt head H2001, H2002, H2003, H2004, H2020

OTHER PROTOCOLS TO SUPPORT:
Pelco-P
Pelco-D Protocol
Pelco SpectraDome II, III
Pelco-Coaxitron
CCR-20G
KTD-312
KTE-301RX
HT600
RM110
Sony LANC for Zoom cameras
Control-L
Dynacolor DynaDome
Videmech (UOCP)
Kalatel CyberDome
Pico2400
YAAN
HY
MV
Burle
Philips AutoDome
Sensormatic SpeedDome
Vicon Surveyor
VCL
Panasonic WV-CS850, WV-CS854, WV-CW860 Domes
American Dynamics Sensornet
ADT
Ademco
SAE
Dennard
Ultrak Ultra Dome
Videoalarm
SAMSUNG
B01
NEON
Santachi
Longcomity
HUNDA600
LILIN
MOLYNX
ALEC

NCD Asel Switchers
Panasonic Switchers
Extron Switchers
Inline Switchers
